Technical Content
Part Image

TLE94004EPXUMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers MOTOR CONTROL BRIDGES

Download TLE94004EPXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

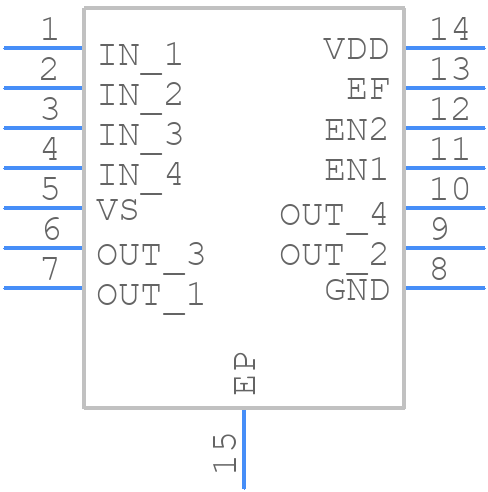

TLE94004EPXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE94004EPXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-14
click to zoom
3D Models
TLE94004EPXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSDSO-14
click to zoom

TLE94004EPXUMA1 Details

  • Manufacturer Part Number:

    TLE94004EPXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    2A

TLE94004EPXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and grounding to minimize EMI.
  • The TLE94004EPXUMA1 has a power-on reset (POR) circuit that ensures the device is properly reset during power-up. Additionally, the device has a built-in startup sequence that configures the device's registers and enables the output stages. Refer to the datasheet for specific startup timing and configuration details.
  • The maximum allowed voltage on the input pins of the TLE94004EPXUMA1 is the voltage supply (VCC) plus 0.3V. Exceeding this voltage may damage the device.
  • Infineon provides a troubleshooting guide in the application note AN2019-02, which includes a step-by-step approach to identifying and resolving common issues with the TLE94004EPXUMA1.
  • The TLE94004EPXUMA1 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Refer to the datasheet for specific temperature-related specifications and limitations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE94004EPXUMA1 Overview

Use the download button to access the TLE94004EPXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94, or try a keyword search, such as Motion Control Electronics
