The recommended PCB layout for the TLE94103EPXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
To configure the TLE94103EPXUMA1 for low-power mode, set the EN pin to logic low and ensure that the VCC pin is connected to a voltage source. Additionally, disable any unused features and reduce the switching frequency to minimize power consumption.
The maximum operating temperature range for the TLE94103EPXUMA1 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
Yes, the TLE94103EPXUMA1 is designed to operate in high-vibration environments, such as in automotive applications. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To troubleshoot issues with the TLE94103EPXUMA1, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the device is properly configured and that the input signals are correct. If issues persist, consult the datasheet and application notes or contact Infineon's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE94103EPXUMA1 Overview

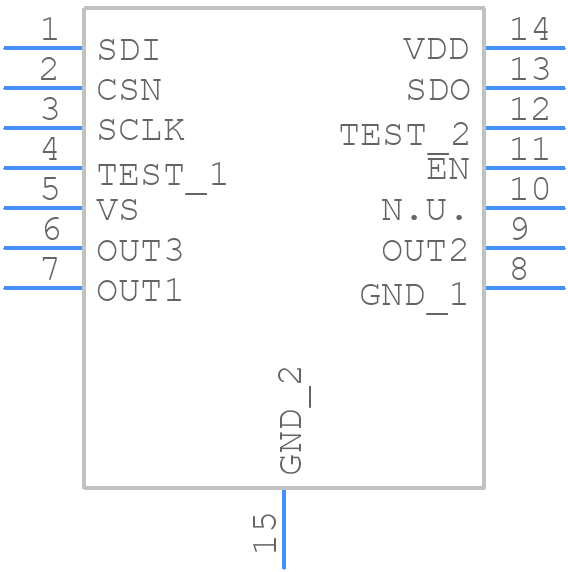

Use the download button to access the TLE94103EPXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94,
or try a keyword search, such as Motion Control Electronics
