The recommended PCB layout for the TLE94104EPXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
The TLE94104EPXUMA1 can be configured for low-power mode by setting the EN pin to logic low and the STBY pin to logic high. Additionally, the device can be put into sleep mode by setting the SLP pin to logic low.
The maximum current rating for the TLE94104EPXUMA1 is 1.5 A per channel, with a total current limit of 3 A for all channels combined.
Troubleshooting the TLE94104EPXUMA1 typically involves checking the power supply, signal integrity, and PCB layout. Engineers can use tools such as oscilloscopes and logic analyzers to diagnose issues. Additionally, Infineon provides a troubleshooting guide in the device's datasheet and application notes.
The TLE94104EPXUMA1 has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should ensure good thermal conductivity between the device and the PCB, and consider using thermal vias, heat sinks, or thermal interface materials as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE94104EPXUMA1 Overview

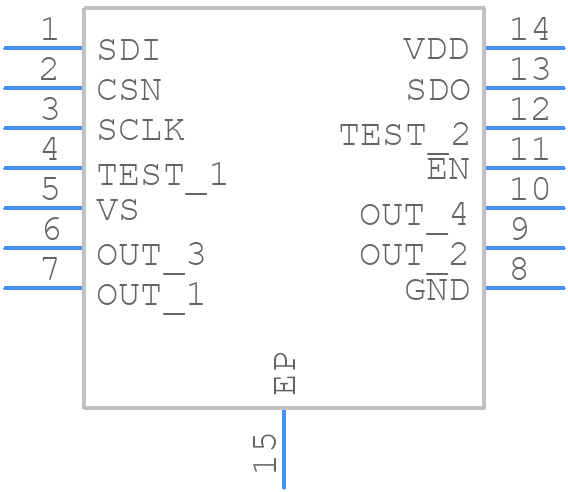

Use the download button to access the TLE94104EPXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94,
or try a keyword search, such as Motion Control Electronics
