The recommended PCB layout for the TLE94112ESXUMA1 can be found in the Infineon application note AN2018-01, which provides guidelines for PCB design, component placement, and thermal management.
The TLE94112ESXUMA1 can be configured for low-power mode by setting the EN pin low and the STBY pin high. Additionally, the device can be put into sleep mode by setting the STBY pin low. Refer to the datasheet for specific timing and voltage requirements.
The maximum current rating for the TLE94112ESXUMA1 is 1.5A per channel, with a total current limit of 3A for all channels combined. However, the actual current rating may vary depending on the application and thermal conditions.
To troubleshoot issues with the TLE94112ESXUMA1, start by checking the power supply voltage, clock frequency, and input signals. Use an oscilloscope to verify the signal waveforms and check for any noise or distortion. Refer to the datasheet and application notes for specific troubleshooting guidelines.
Yes, the TLE94112ESXUMA1 is designed to meet the requirements of automotive safety standards such as ISO 26262 and IEC 61508. However, the specific safety requirements and certifications may vary depending on the application and region.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE94112ESXUMA1 Overview

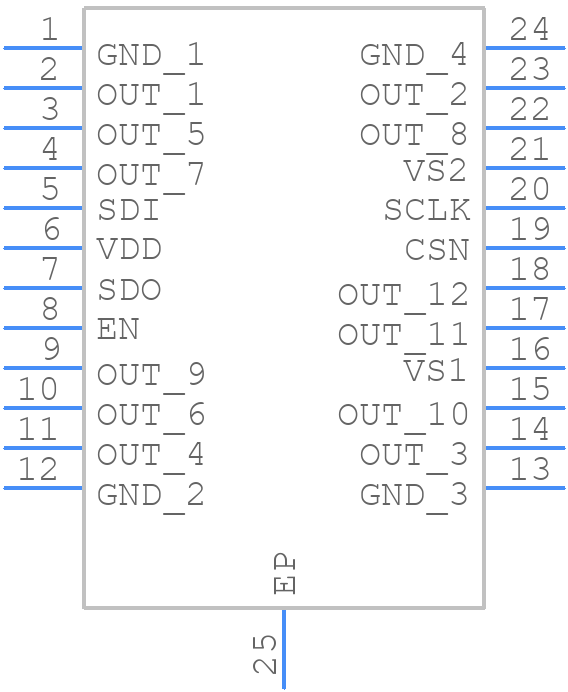

Use the download button to access the TLE94112ESXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94,
or try a keyword search, such as Motion Control Electronics
