Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management.
Infineon provides a configuration tool, the TLE9461 Configurator, which allows users to customize the device for their specific application. The tool generates a configuration file that can be loaded into the device.
The TLE9461ESV33XUMA1 is specified to operate from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and use case. Consult the datasheet and application notes for more information.
Infineon provides a troubleshooting guide in the application note AN2019-02, which covers common issues and their solutions. Additionally, the Infineon support team can be contacted for further assistance.
The TLE9461ESV33XUMA1 is designed with safety and security in mind, including features such as fault detection and protection, and secure boot mechanisms. Consult the datasheet and application notes for more information on implementing safety and security measures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE9461ESV33XUMA1 Overview

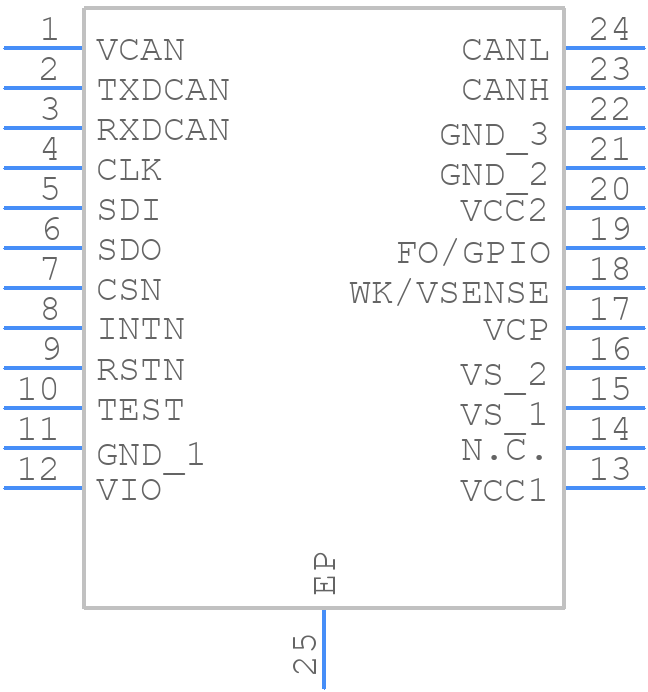

Use the download button to access the TLE9461ESV33XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE94,
or try a keyword search, such as Network Interfaces
