TLE98442QXXUMA1 - Infineon

Description: Infineon TLE98442QXXUMA1, 64bit ARM Cortex M0 Microcontroller, Cortex, 40MHz, 64 kB Flash, 48-Pin LQFP

Download TLE98442QXXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

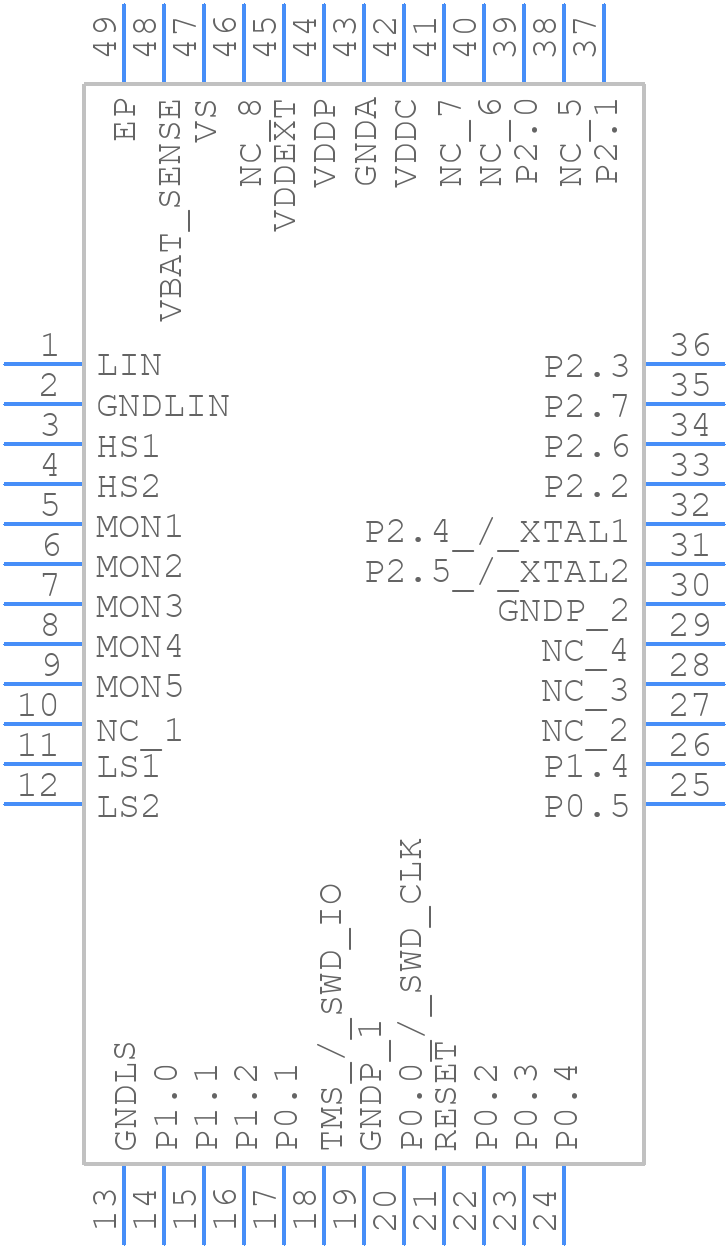

TLE98442QXXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE98442QXXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN
click to zoom
3D Models
TLE98442QXXUMA1 - Infineon - 3D model - Quad Flat No-Lead - VQFN
click to zoom

TLE98442QXXUMA1 Details

  • Manufacturer Part Number:

    TLE98442QXXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • Country Of Origin:

    Germany, Malaysia

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    6 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    10

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    4096

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Speed:

    40 MHz

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

TLE98442QXXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management.
  • The TLE98442QXXUMA1 is a highly configurable device. Infineon provides a Motor Control Evaluation Platform (MCEP) that includes a graphical user interface (GUI) for configuring the device. The MCEP also includes example code and documentation to help with configuration.
  • The TLE98442QXXUMA1 has an operating temperature range of -40°C to 150°C. However, the device can be operated at a reduced performance level up to 160°C for short periods of time.
  • Infineon provides a troubleshooting guide in the application note AN2019-02, which includes a step-by-step process for identifying and resolving common issues with the device.
  • The recommended power supply voltage for the TLE98442QXXUMA1 is 5V ±10%. However, the device can operate with a power supply voltage as low as 4.5V and as high as 5.5V.
