TLE9845QXXUMA1 footprint, schematic symbol and 3D model by Infineon

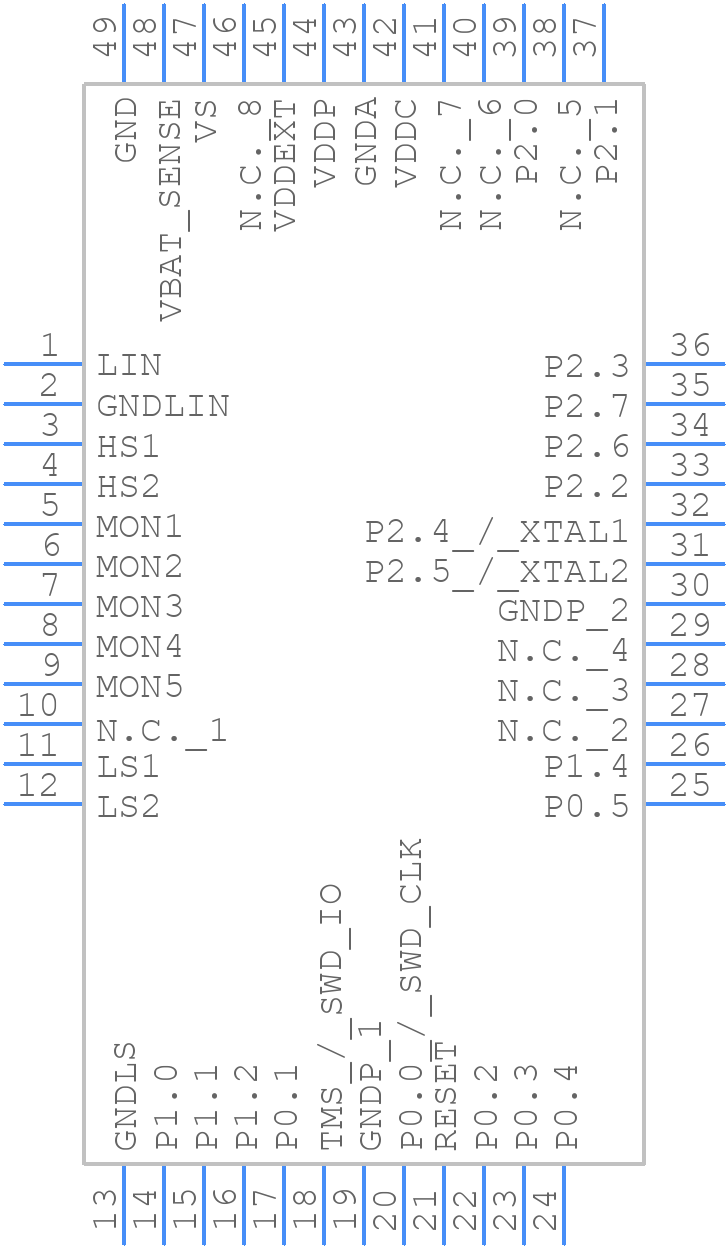

Symbol

click to zoom

PCB Footprints

TLE9845QXXUMA1 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-48-31

click to zoom

3D Models

TLE9845QXXUMA1 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-48-31

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLE9845QXXUMA1
Part Number TLE9845QXXUMA1
Manufacturer Infineon
Pin Count 49
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - PG-VQFN-48-31
Released Date Feb 3, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLE9845QXXUMA1 Details

Manufacturer Part Number:
TLE9845QXXUMA1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
VQFN-48
Country Of Origin:
Malaysia
HTS Code:
8542.31.00.25
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Has ADC:
YES
Additional Feature:
FLASH MEMORY INCLUDES BUILT-IN 4KB IN
Bit Size:
32
Clock Frequency-Max:
6 MHz
DAC Channels:
NO
DMA Channels:
NO
JESD-30 Code:
S-PQCC-N48
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
18
Number of Terminals:
48
On Chip Program ROM Width:
8
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
RAM (bytes):
4096
ROM (words):
49152
ROM Programmability:
FLASH
Screening Level:
AEC-Q100
Seated Height-Max:
0.9 mm
Speed:
40 MHz
Supply Voltage-Max:
28 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
8 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
7 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC

TLE9845QXXUMA1 Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
Infineon provides a Motor Control Configurator tool that allows users to configure the TLE9845QXXUMA1 for their specific motor control application. The tool generates a configuration file that can be used to program the device.
The TLE9845QXXUMA1 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating.
While the TLE9845QXXUMA1 is designed to operate with a 5V supply, it can tolerate a voltage range of 4.5V to 5.5V. However, operating the device outside of this range may affect its performance and reliability. Consult the datasheet and application notes for specific guidance.
Infineon provides a troubleshooting guide in the application note AN2019-12, which covers common issues and their solutions. Additionally, the device has built-in diagnostic features, such as error flags and status registers, that can help identify and debug problems.

Trust Checks

Community Provided

System Verified

Community Approved

TLE9845QXXUMA1 Overview

Use the download button to access the TLE9845QXXUMA1 schematic symbol, PCB footprint, and 3D model.
