- Stock & Prices $ Price & Stock for TLE9867QXA40XUMA1
- Part Number TLE9867QXA40XUMA1
- Manufacturer Infineon
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - vqfn49
- Released Date Jan 19, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLE9867QXA40XUMA1 Details
-
Manufacturer Part Number:
TLE9867QXA40XUMA1
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Country Of Origin:
Malaysia
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
3
-
Moisture Sensitivity Level:
3
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC
TLE9867QXA40XUMA1 Frequently Asked Questions (FAQs)
-
Infineon provides a recommended PCB layout in the application note AN2019-11, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
Infineon provides a Motor Control Configurator tool that allows users to configure the TLE9867QXA40XUMA1 for their specific motor control application. The tool generates a configuration file that can be used to program the device.
-
The TLE9867QXA40XUMA1 is rated for operation in an ambient temperature range of -40°C to 150°C, but the maximum ambient temperature range may vary depending on the specific application and cooling conditions.
-
Yes, the TLE9867QXA40XUMA1 is designed to meet the requirements of safety-critical applications, such as ISO 26262 and IEC 61508. However, a detailed safety analysis and validation are required to ensure that the device meets the specific safety requirements of the application.
-
Infineon recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a total capacitance of at least 10uF per voltage rail. The capacitors should be placed as close as possible to the device pins.
Trust Checks
Expert Contribution
System Verified
Community Approved
TLE9867QXA40XUMA1 Overview

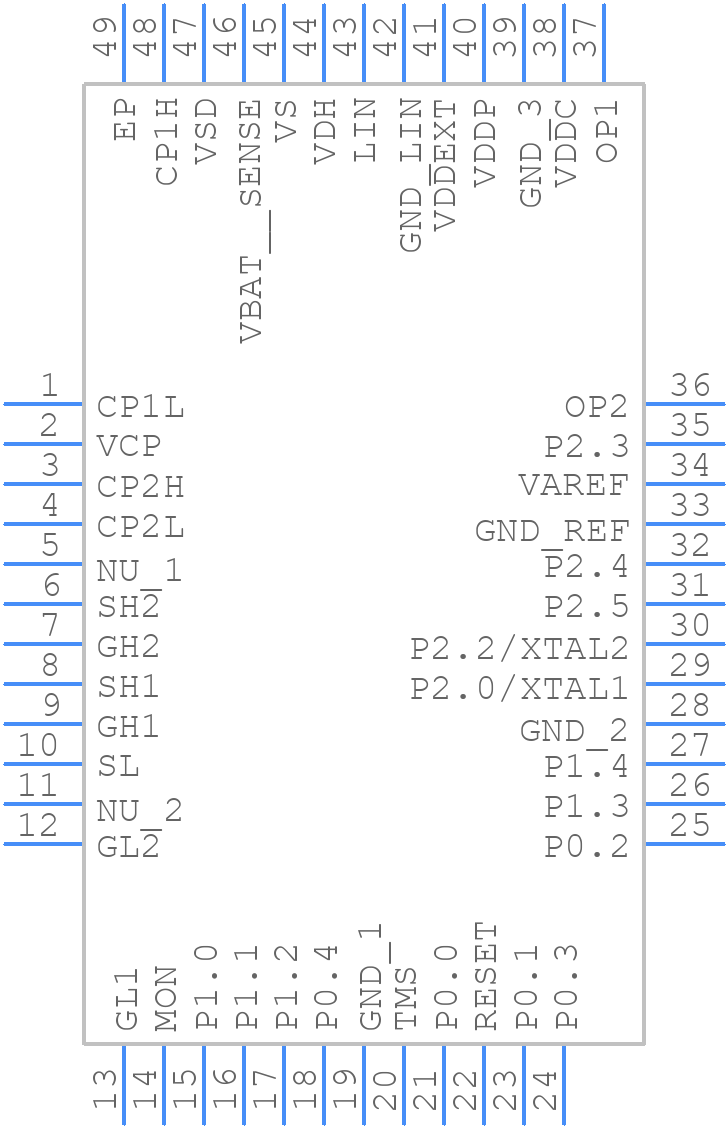

Use the download button to access the TLE9867QXA40XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE98,
or try a keyword search, such as Microcontrollers
