Part Image

TLE9868QXB20XUMA2 - Infineon

Description: Microcontroller with LIN and H-Bridge MOSFET Driver for Automotive Applications

Download TLE9868QXB20XUMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

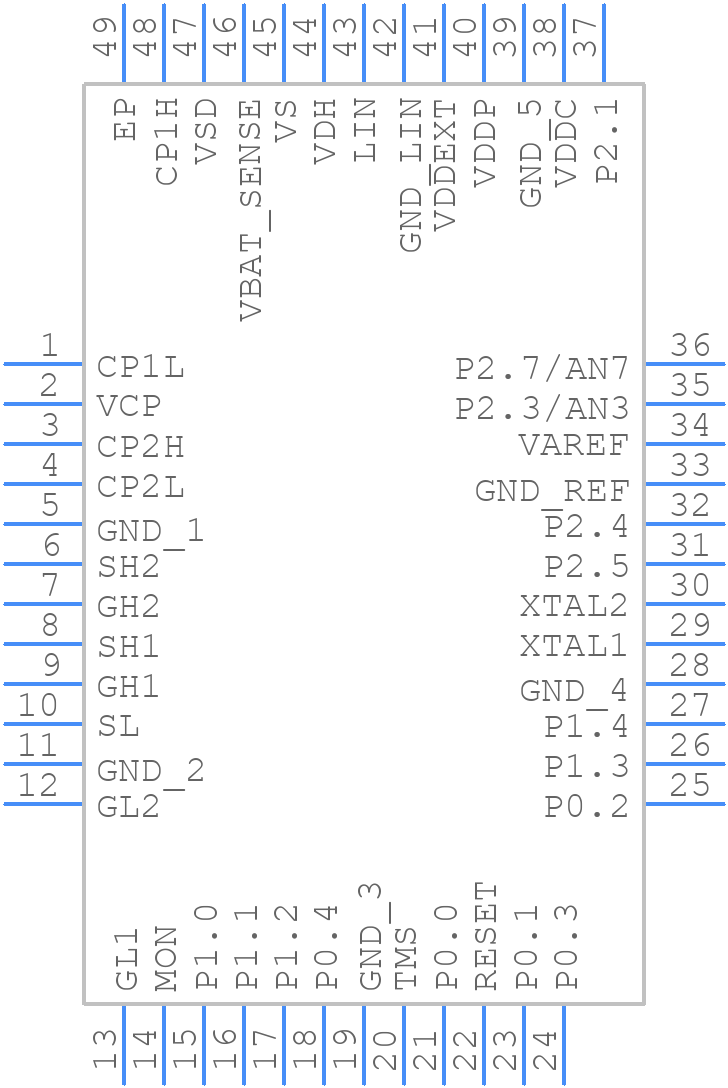

Symbol
TLE9868QXB20XUMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLE9868QXB20XUMA2 - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PG-VQFN-48-31
click to zoom
3D Models
TLE9868QXB20XUMA2 - Infineon - 3D model - Quad Flat No-Lead - PG-VQFN-48-31
click to zoom

TLE9868QXB20XUMA2 Details

  • Manufacturer Part Number:

    TLE9868QXB20XUMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

TLE9868QXB20XUMA2 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-01, which includes guidelines for component placement, routing, and thermal management.
  • Infineon provides a Motor Control Tool (MCT) software that allows users to configure the TLE9868QXB20XUMA2 for specific motor control applications, including setting up the motor parameters, configuring the control loops, and generating the corresponding code.
  • The TLE9868QXB20XUMA2 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Infineon provides guidelines for EMC design considerations in the application note AN2019-02, which includes recommendations for PCB layout, component selection, and shielding.
  • The recommended power supply voltage for the TLE9868QXB20XUMA2 is 5V ±10%, with a minimum voltage of 4.5V and a maximum voltage of 5.5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE9868QXB20XUMA2 Overview

Use the download button to access the TLE9868QXB20XUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE98, or try a keyword search, such as Microcontrollers
