TLI4970-D050T4 - Infineon

Description: High precision miniature coreless magnetic current sensor for AC and DC measurements with digital interface and fast overcurrent detection

Download TLI4970-D050T4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

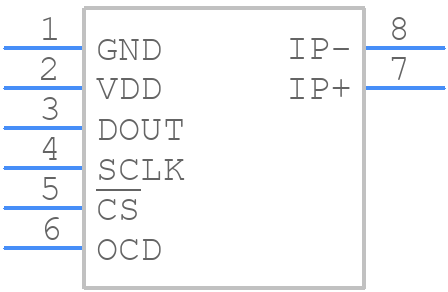

TLI4970-D050T4 - Infineon - PCB symbol
click to zoom
PCB Footprints
TLI4970-D050T4 - Infineon PCB footprint - Other - Other - TLI4970-D050T4-2
click to zoom
3D Models
TLI4970-D050T4 - Infineon - 3D model - Other - TLI4970-D050T4-2
click to zoom

TLI4970-D050T4 Details

  • Manufacturer Part Number:

    TLI4970-D050T4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TISON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Width:

    7 mm

TLI4970-D050T4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLI4970-D050T4 is -40°C to 150°C.
  • The TLI4970-D050T4 requires a single 5V power supply, and it's recommended to use a decoupling capacitor of at least 100nF between VCC and GND to ensure stable operation.
  • The maximum current rating for the TLI4970-D050T4 is 50mA, but it's recommended to keep the current below 20mA for reliable operation.
  • The TLI4970-D050T4 has a programmable current sensing range, which can be configured using the SPI interface. The device has three programmable ranges: 50mA, 100mA, and 200mA.
  • The TLI4970-D050T4 has a current measurement accuracy of ±2% over the entire operating temperature range.
