TLI4970D025T5XUMA1 footprint, schematic symbol and 3D model by Infineon

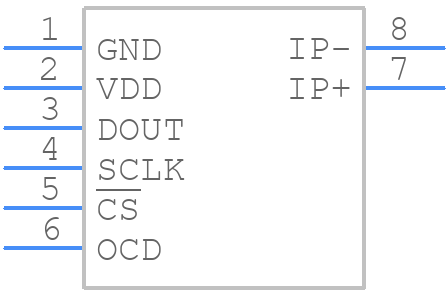

Symbol

click to zoom

PCB Footprints

TLI4970D025T5XUMA1 - Infineon PCB footprint - Other - Other - PG-TISON-8-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLI4970D025T5XUMA1
Part Number TLI4970D025T5XUMA1
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PG-TISON-8-1-1
Released Date Jul 16, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLI4970D025T5XUMA1 Details

Manufacturer Part Number:
TLI4970D025T5XUMA1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
TISON-8
HTS Code:
8542.39.00.01
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Additional Feature:
SEATED HGT-CALCULATED
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE
Seated Height-Max:
1.05 mm
Supply Voltage-Max (Vsup):
3.5 V
Supply Voltage-Min (Vsup):
3.1 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Width:
7 mm

TLI4970D025T5XUMA1 Frequently Asked Questions (FAQs)

The maximum operating temperature range for the TLI4970D025T5XUMA1 is -40°C to 150°C.
The TLI4970D025T5XUMA1 requires a single 5V power supply, and it's recommended to use a decoupling capacitor of at least 100nF between VCC and GND to ensure stable operation.
The maximum current rating for the TLI4970D025T5XUMA1 is 25A, but it's recommended to derate the current based on the ambient temperature and PCB design.
The TLI4970D025T5XUMA1 has a programmable current sensing range, which can be configured using the SPI interface. The device can be set to measure currents from ±50mA to ±25A, with a resolution of 1mA.
The TLI4970D025T5XUMA1 has a typical accuracy of ±1.5% for current measurements, with a maximum error of ±3% over the entire operating temperature range.

Trust Checks

Expert Contribution

System Verified

Community Approved

TLI4970D025T5XUMA1 Overview

Use the download button to access the TLI4970D025T5XUMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLI49, or try a keyword search, such as Other Signal Circuits
