TLI4970D050T4XUMA1 footprint, schematic symbol and 3D model by Infineon

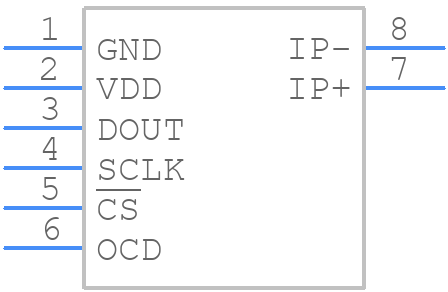

Symbol

click to zoom

PCB Footprints

TLI4970D050T4XUMA1 - Infineon PCB footprint - Other - Other - PG-TISON-8-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLI4970D050T4XUMA1
Part Number TLI4970D050T4XUMA1
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PG-TISON-8-1-1
Released Date Aug 24, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLI4970D050T4XUMA1 Details

Manufacturer Part Number:
TLI4970D050T4XUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
TISON-8
ECCN Code:
EAR99
HTS Code:
8542.39.00
Factory Lead Time:
4 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE
Seated Height-Max:
1.05 mm
Supply Voltage-Max (Vsup):
3.5 V
Supply Voltage-Min (Vsup):
3.1 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Width:
7 mm

TLI4970D050T4XUMA1 Frequently Asked Questions (FAQs)

The maximum operating temperature range for the TLI4970D050T4XUMA1 is -40°C to 150°C.
The TLI4970D050T4XUMA1 requires a single 5V power supply, and it's recommended to use a decoupling capacitor of at least 100nF between VCC and GND to ensure stable operation.
The maximum current rating for the TLI4970D050T4XUMA1 is 20mA, but it's recommended to keep the current below 10mA for optimal performance.
The TLI4970D050T4XUMA1 can be configured using the SPI interface, and the configuration depends on the specific application requirements. Refer to the datasheet and application notes for more information.
The typical response time for the TLI4970D050T4XUMA1 is around 10μs, but it can vary depending on the specific application and configuration.

Trust Checks

Expert Contribution

System Verified

Community Approved

TLI4970D050T4XUMA1 Overview

Use the download button to access the TLI4970D050T4XUMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TLI49, or try a keyword search, such as Other Signal Circuits
