Description:AEC-Q100 (grade 1) qualified for automotive applications • Compliant to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2 A and ISO/DIS 17987–4 electrical physical layer (EPL) specification • Conforms to SAE J2602-1 LIN network for vehicle applications Supports 12-V battery applications • LIN transmit data rate up to 20 kbps • LIN receive data rate up to 100 kbps • Wide operational supply voltage range from 4 V to 36 V
ESD Value for VSUP, LIN is 3B; Transmit Data rate 20kbps
Data Rate:
20 Mbps
JESD-30 Code:
R-PDSO-N14
Length:
4.5 mm
Moisture Sensitivity Level:
2
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
14
Number of Transceivers:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC14,.12,25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.9 mm
Supply Current-Max:
7.5 mA
Supply Voltage-Nom:
8 V
Surface Mount:
YES
Telecom IC Type:
LIN TRANSCEIVER
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TLIN1022ADMTRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions and thermal management guidelines provided in the datasheet. Additionally, consider using thermal interface materials, heat sinks, or fans to maintain a safe junction temperature (Tj) below the maximum rating of 150°C.
When using TLIN1022ADMTRQ1 in a system with multiple power domains, it is crucial to ensure that the device is properly powered down or isolated during power-domain transitions to prevent damage or malfunction. Texas Instruments recommends using power-domain controllers or sequencers to manage power-domain transitions and ensure safe operation.
To troubleshoot issues with TLIN1022ADMTRQ1, start by reviewing the datasheet and application notes to ensure that the device is used within its recommended operating conditions. Then, use debugging tools such as oscilloscopes, logic analyzers, or protocol analyzers to identify the root cause of the issue. Texas Instruments also provides technical support and resources, including the E2E community forum, to help resolve issues.
When using TLIN1022ADMTRQ1 in a system with high-speed signals or high-frequency noise, it is essential to follow proper PCB design and layout guidelines to minimize signal integrity issues and electromagnetic interference (EMI). Additionally, consider using signal conditioning, filtering, or shielding techniques to reduce noise and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN1022ADMTRQ1 Overview

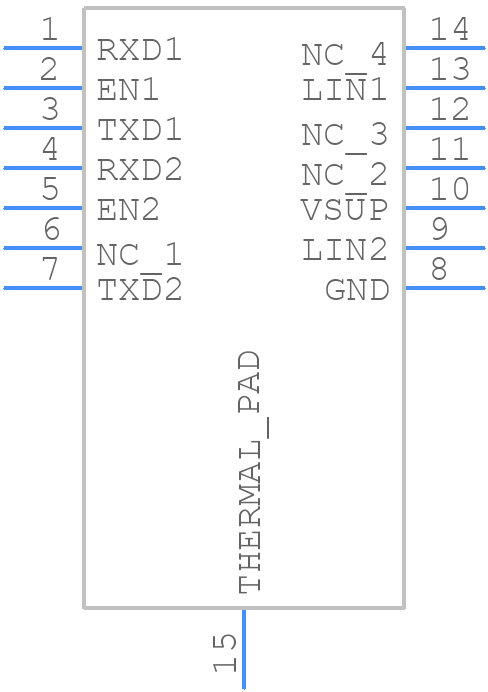

Use the download button to access the TLIN1022ADMTRQ1 schematic symbol, PCB footprint, and 3D model.
