- Part Number TLIN1022ADRQ1
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D
- Released Date Sep 13, 2021
- Last Modified Date Nov 30, 2023 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
TLIN1022ADRQ1 Details
-
Manufacturer Part Number:
TLIN1022ADRQ1
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Additional Feature:
ESD Value for VSUP, LIN is 3B; Transmit Data rate 20kbps
TLIN1022ADRQ1 Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions and thermal management guidelines provided in the datasheet. Additionally, consider using thermal interface materials, heat sinks, or fans to maintain a safe junction temperature (Tj) below 150°C.
-
When using TLIN1022ADRQ1 in a system with multiple power domains, it is crucial to ensure that the device is properly isolated from other power domains to prevent voltage backfeeding and damage. Use isolation techniques such as optocouplers, transformers, or isolated DC-DC converters to maintain isolation between power domains.
-
To troubleshoot issues with TLIN1022ADRQ1, start by reviewing the datasheet and application notes to ensure that the device is properly configured and operated within its recommended specifications. Use oscilloscopes, logic analyzers, or other diagnostic tools to identify the root cause of the issue. Consult Texas Instruments' technical support resources or online forums for additional guidance and support.
-
When using TLIN1022ADRQ1 in a system with high-speed signals or high-frequency noise, it is essential to ensure that the device is properly shielded and filtered to prevent electromagnetic interference (EMI) and radio-frequency interference (RFI). Use techniques such as shielding, filtering, and grounding to minimize the impact of high-frequency noise on the device's operation.
Trust Checks
Community Provided
System Verified
Community Approved
TLIN1022ADRQ1 Overview

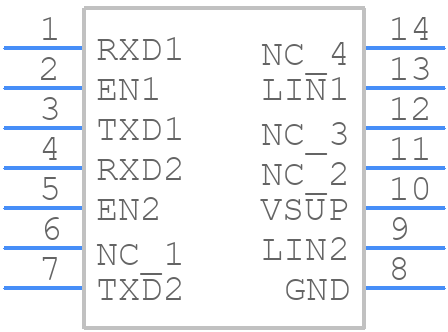

Use the download button to access the TLIN1022ADRQ1 schematic symbol, PCB footprint, and 3D model.
