TLIN1024ARGYRQ1 - Texas Instruments

Description: LIN Transceivers Automotive, quad local interconnect network (LIN) transceiver with dominant state timeout 24-VQFN -40 to 125

Download TLIN1024ARGYRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

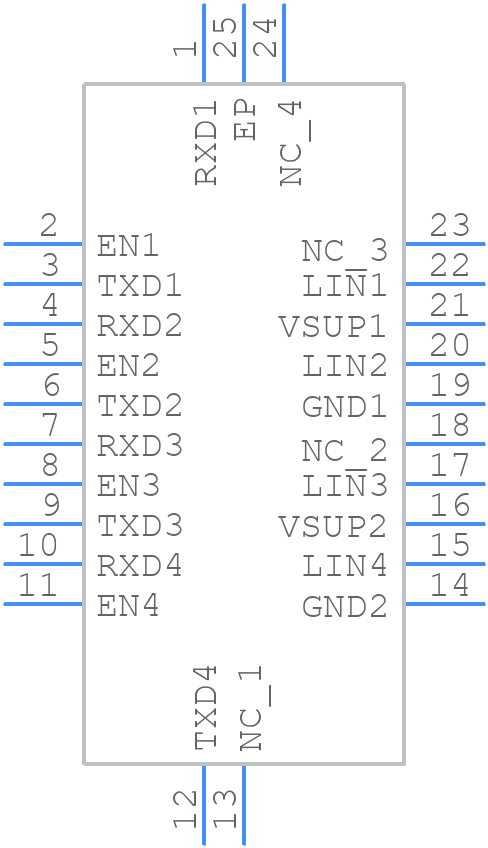

Symbol
TLIN1024ARGYRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN1024ARGYRQ1 - Texas Instruments PCB footprint - Other - Other - RGY0024E
click to zoom
3D Models
TLIN1024ARGYRQ1 - Texas Instruments - 3D model - Other - RGY0024E
click to zoom

TLIN1024ARGYRQ1 Details

  • Manufacturer Part Number:

    TLIN1024ARGYRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVFQFP

  • Package Equivalence Code:

    LCC24,.14X.21,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TLIN1024ARGYRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND for decoupling.
  • Use a clean and stable power supply with a voltage range of 1.65V to 3.6V. Ensure the power supply can provide enough current to support the device's operating current. Add a 10uF capacitor in parallel with a 0.1uF capacitor between VCC and GND for power supply filtering.
  • The recommended clock frequency is 10MHz to 50MHz. However, the device can operate at frequencies up to 100MHz with reduced performance. Ensure the clock signal is clean and has minimal jitter.
  • Use a buffer amplifier or an analog multiplexer to drive the analog inputs. Ensure the input signal is within the specified voltage range and has a bandwidth less than 10MHz. Use a 1kΩ to 10kΩ resistor in series with the input signal to prevent overvoltage.
  • The TLIN1024ARGYRQ1 uses a SPI-compatible interface. Ensure the interface protocol is set to SPI mode 0 (CPOL=0, CPHA=0) with a clock frequency of 10MHz to 50MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLIN1024ARGYRQ1 Overview

Use the download button to access the TLIN1024ARGYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN1, or try a keyword search, such as Network Interfaces
