TLIN1027DRBRQ1 - Texas Instruments

Description: LIN Transceivers Automotive local interconnect network (LIN) transceiver for K-line applications 8-SON -40 to 125

Download TLIN1027DRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

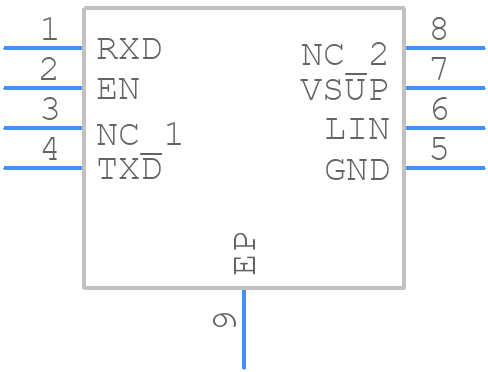

TLIN1027DRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN1027DRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB 84
click to zoom
3D Models
TLIN1027DRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB 84
click to zoom

TLIN1027DRBRQ1 Details

  • Manufacturer Part Number:

    TLIN1027DRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-07-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.1 mA

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLIN1027DRBRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND for decoupling.
  • Use a level translator or a voltage divider to match the voltage levels between the TLIN1027DRBRQ1 and the microcontroller. Ensure proper termination of the bus lines and use a common clock signal to synchronize data transmission.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the TLIN1027DRBRQ1 can support cable lengths up to 10 meters at 100 Mbps. However, it's recommended to use a repeater or a signal conditioner for longer cable lengths.
  • Use a logic analyzer or an oscilloscope to monitor the bus signals and identify any errors or anomalies. Check the power supply voltage and ensure it's within the recommended range. Verify the correct configuration of the device and the microcontroller.
  • The TLIN1027DRBRQ1 is rated for operation up to 85°C. However, it's recommended to derate the device's performance and consider using a heat sink or a thermal management system for high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLIN1027DRBRQ1 Overview

Use the download button to access the TLIN1027DRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN1, or try a keyword search, such as Network Interfaces
