TLIN10285DRBRQ1 - Texas Instruments

Description: LIN Transceivers Automotive local interconnect network (LIN) transceiver with integrated voltage regulator 8-SON -40 to 125

Download TLIN10285DRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

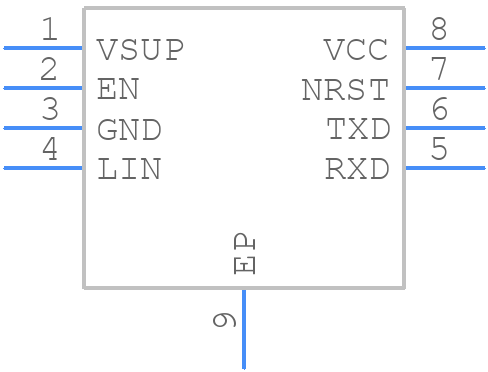

TLIN10285DRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN10285DRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008J
click to zoom
3D Models
TLIN10285DRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008J
click to zoom

TLIN10285DRBRQ1 Details

  • Manufacturer Part Number:

    TLIN10285DRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSON-8

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TLIN10285DRBRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND for decoupling.
  • Use a pull-up resistor on the SDA line, and ensure that the microcontroller's I2C clock frequency is within the TLIN10285DRBRQ1's specified range (up to 400 kHz). Also, use a buffer or repeater if the bus is long or has multiple devices.
  • The maximum cable length depends on the specific application and environment. As a general guideline, the TLIN10285DRBRQ1 can support cable lengths up to 10 meters at 100 Mbps. However, it's recommended to use a repeater or a more robust transceiver for longer cable lengths.
  • Use a hot-swap controller or a dedicated IC for hot-swapping, and ensure that the TLIN10285DRBRQ1 is powered down before inserting or removing devices. Also, use a TVS diode or a surge protector to protect the device from voltage spikes.
  • The TLIN10285DRBRQ1 has a maximum junction temperature of 150°C. Ensure good airflow and thermal conduction to keep the device within the recommended operating temperature range. Use a heat sink or thermal pad if necessary.
