TLIN10285SDRQ1 - Texas Instruments

Description: LIN Transceivers Automotive local interconnect network (LIN) Transceiver with integrated voltage regulator 8-SOIC -40 to 125

Download TLIN10285SDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

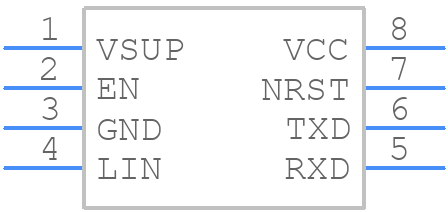

TLIN10285SDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN10285SDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLIN10285SDRQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TLIN10285SDRQ1 Details

  • Manufacturer Part Number:

    TLIN10285SDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-11-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TLIN10285SDRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material to improve heat transfer. Monitor the junction temperature and adjust the operating conditions accordingly.
  • Operating at a lower voltage may reduce the device's performance, increase power consumption, and affect its reliability. Consult the datasheet for specific voltage derating guidelines.
  • Use a logic analyzer or an oscilloscope to capture and analyze the signal waveforms. Check the power supply and clock signals for noise or jitter. Verify the device's configuration and programming. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, but ensure that the device meets the specific requirements of the standard. Consult the datasheet and relevant industry standards for compliance guidelines. Perform thorough testing and validation to ensure the device meets the required specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLIN10285SDRQ1 Overview

Use the download button to access the TLIN10285SDRQ1 schematic symbol, PCB footprint, and 3D model.
