Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing noise coupling.
The TLIN14313RGYRQ1 has a thermal pad on the bottom, which should be connected to a solid ground plane or a thermal relief pattern on the PCB to dissipate heat. Ensure good thermal conductivity and consider using thermal vias or a heat sink if necessary.
The TLIN14313RGYRQ1 is rated for operation from -40°C to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Additionally, consider using overvoltage protection circuits, such as voltage regulators or clamp circuits, to prevent damage from voltage transients.
The TLIN14313RGYRQ1 requires a 50-ohm termination on the input and output lines to ensure proper signal integrity and minimize reflections. Use a 50-ohm resistor in series with the input and output lines, and consider using a termination network for high-frequency applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN14313RGYRQ1 Overview

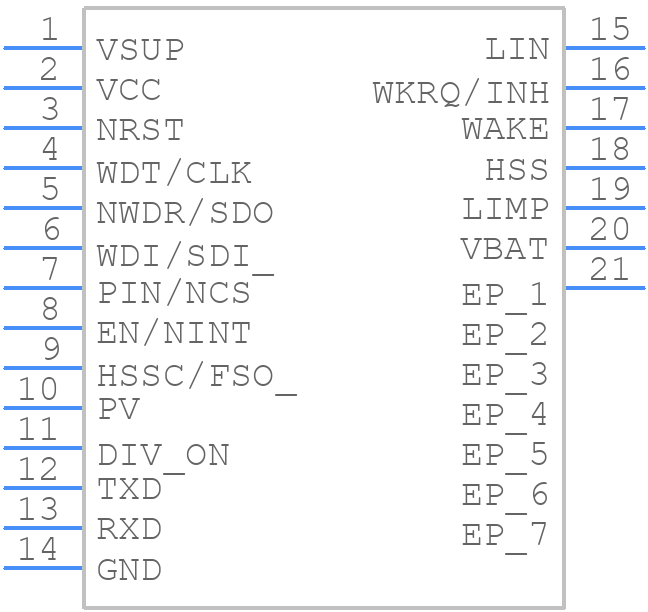

Use the download button to access the TLIN14313RGYRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN1,
or try a keyword search, such as Network Interfaces
