Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management of the device, as excessive heat can affect performance and reliability. Use thermal pads or heat sinks if necessary, and ensure good airflow around the device.
Operating the TLIN14413DMTTQ1 outside the recommended voltage range may affect its performance, power consumption, and reliability. Lower voltages may reduce the device's speed and increase power consumption, while higher voltages may increase power consumption and reduce the device's lifespan. Always operate within the recommended voltage range for optimal performance and reliability.
The TLIN14413DMTTQ1 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, testing, and assembly. Use ESD-safe materials, wrist straps, and mats, and ensure that all equipment is properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, if necessary.
The TLIN14413DMTTQ1 is designed to operate at a clock frequency of 50 MHz, but it can operate at other frequencies within its specified range. However, using a different clock frequency may affect the device's performance, power consumption, and signal integrity. Ensure that the clock frequency is within the specified range and that the device is properly configured for the chosen frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN14413DMTTQ1 Overview

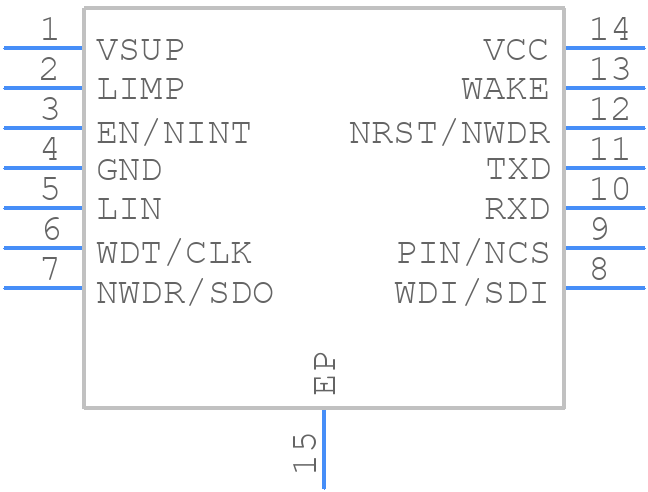

Use the download button to access the TLIN14413DMTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN1,
or try a keyword search, such as Network Interfaces
