Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TLIN14415DMTTQ1 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, the application note SLVAE04 provides guidelines for thermal management, including thermal pad connection and heat sink design.
The TLIN14415DMTTQ1 has an operating temperature range of -40°C to 125°C, but the device can be operated at a maximum junction temperature (TJ) of 150°C. It's essential to ensure that the device does not exceed this temperature to prevent damage or malfunction.
Texas Instruments provides a troubleshooting guide in the application note SLVAE04, which includes steps to identify and resolve common issues such as output voltage errors, current limiting, and thermal shutdown. Additionally, the device's datasheet provides information on fault detection and protection features.
The TLIN14415DMTTQ1 has built-in electrostatic discharge (ESD) protection and latch-up prevention features. However, it's still essential to follow proper handling and assembly procedures to prevent damage. The device's datasheet provides information on ESD protection and latch-up prevention, and the application note SLVAE04 provides guidelines for PCB design and assembly to minimize the risk of ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN14415DMTTQ1 Overview

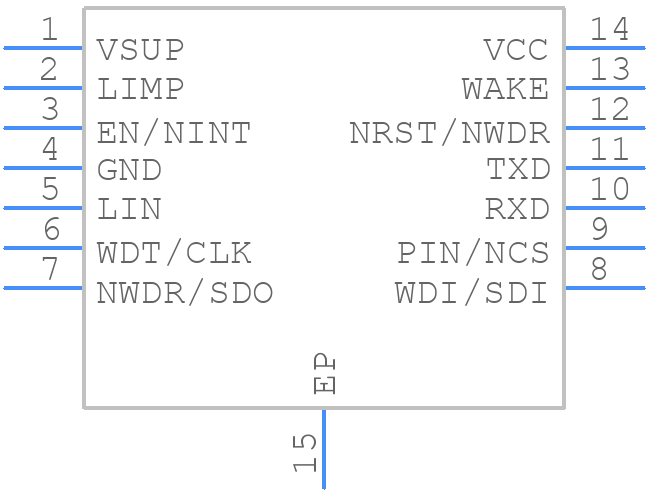

Use the download button to access the TLIN14415DMTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN1,
or try a keyword search, such as Network Interfaces
