TLIN2021ADRBRQ1 - Texas Instruments

Description: LIN Transceivers Automotive Fault-Protected LIN Transceiver with Inhibit and Wake 8-SON -40 to 125

Download TLIN2021ADRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

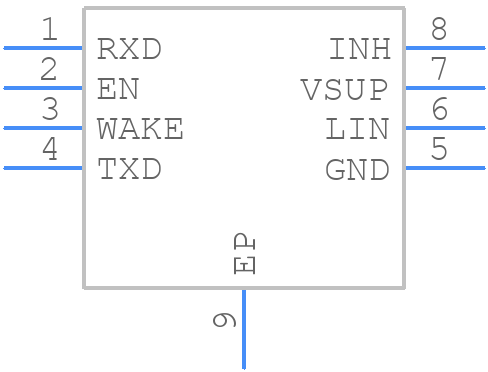

TLIN2021ADRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN2021ADRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008J
click to zoom
3D Models
TLIN2021ADRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008J
click to zoom

TLIN2021ADRBRQ1 Details

  • Manufacturer Part Number:

    TLIN2021ADRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100 Mbps

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLIN2021ADRBRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital traces separate, and use a common mode filter to reduce EMI.
  • Follow the calibration procedure outlined in the datasheet, and use a high-precision voltage reference. Ensure the device is in a stable thermal environment during calibration.
  • The maximum cable length depends on the specific application and noise environment. As a general guideline, keep the cable length below 10 meters to minimize signal degradation.
  • The TLIN2021ADRBRQ1 is rated for operation up to 125°C. However, ensure proper thermal management and consider derating the device's performance at higher temperatures.
  • Use a logic analyzer or oscilloscope to verify the digital signals. Check the clock frequency, data format, and signal integrity. Consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLIN2021ADRBRQ1 Overview

Use the download button to access the TLIN2021ADRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2, or try a keyword search, such as Network Interfaces
