Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management of the device, as excessive temperatures can affect performance and reliability.
Operating the device outside the recommended input voltage range may affect its performance, power consumption, and reliability. Lower input voltages may reduce the output current capability, while higher input voltages may increase power consumption and reduce the device's lifespan.
The TLIN2022DMTRQ1 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use ESD-safe equipment, handle the device by the body or pins, and avoid touching the pins or leads.
The TLIN2022DMTRQ1 is a high-speed, low-power translator suitable for various applications, including level shifting, voltage translation, and signal conditioning in industrial, automotive, and consumer electronics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN2022DMTRQ1 Overview

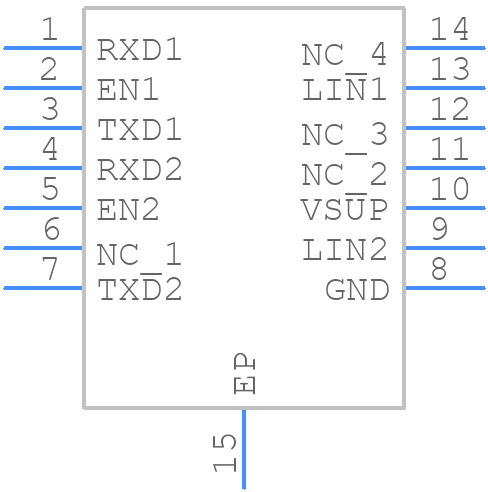

Use the download button to access the TLIN2022DMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
