Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
The TLIN2022DMTTQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate thermal management. Use a heat sink or thermal pad, and ensure good airflow around the device. You can also consider using a thermal interface material (TIM) to improve heat transfer.
The datasheet doesn't specify a recommended input capacitance, but a general rule of thumb is to use a capacitance value between 10nF to 100nF. However, the optimal value depends on the specific application, signal frequency, and impedance. It's recommended to experiment with different values to find the optimal capacitance for your design.
To ensure EMC, follow good design practices such as using a shielded enclosure, keeping the device away from noise sources, and using filtering or shielding on the input and output lines. Additionally, consider using a common-mode choke or ferrite bead to reduce electromagnetic interference (EMI).
The TLIN2022DMTTQ1 is specified to operate up to 100 MHz, but the actual operating frequency may be limited by the specific application, PCB layout, and signal quality. It's recommended to characterize the device's performance at the desired frequency to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN2022DMTTQ1 Overview

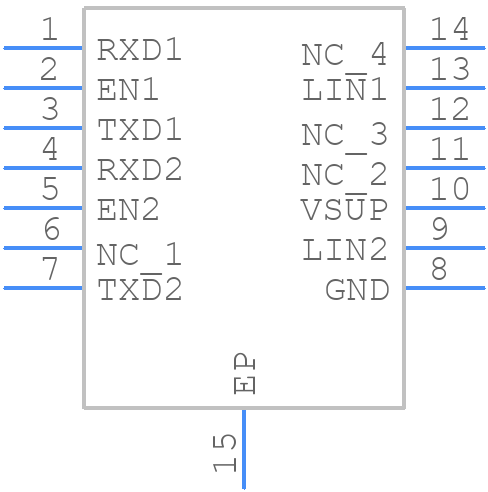

Use the download button to access the TLIN2022DMTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2,
or try a keyword search, such as Network Interfaces
