TLIN2029ADRQ1 - Texas Instruments

Description: Fault protected local interconnect network (LIN) transceiver with dominant state timeout

Download TLIN2029ADRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

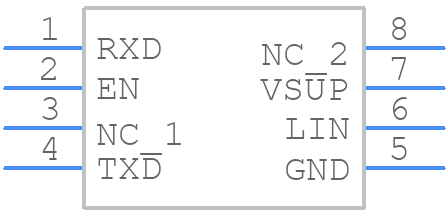

TLIN2029ADRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN2029ADRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLIN2029ADRQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TLIN2029ADRQ1 Details

  • Manufacturer Part Number:

    TLIN2029ADRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TLIN2029ADRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Use a pull-up resistor on the SDA line for I2C communication. Also, ensure that the microcontroller and TLIN2029ADRQ1 are properly synchronized.
  • The TLIN2029ADRQ1 can operate from -40°C to 125°C, but the accuracy and reliability may degrade at extreme temperatures. It's recommended to operate within the -20°C to 85°C range for optimal performance.
  • The TLIN2029ADRQ1 has a built-in POR and BOR circuitry. Ensure that the power supply is stable and within the recommended range. Use a capacitor between VCC and GND to filter out noise and ensure a clean power-on reset.
  • The recommended input voltage range for the TLIN2029ADRQ1 is 1.7V to 5.5V. Operating outside this range may affect the accuracy and reliability of the device.
