Part Image

TLIN2029DQ1 - Texas Instruments

Description: Fault Protected Local Interconnect Network (LIN) Transceiver With Dominant State Timeout

Download TLIN2029DQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

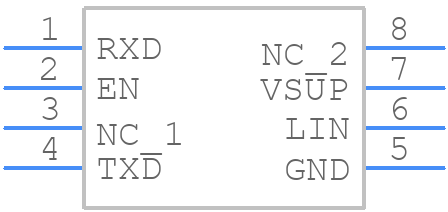

TLIN2029DQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN2029DQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - soic 8
click to zoom
3D Models
TLIN2029DQ1 - Texas Instruments - 3D model - Small Outline Packages - soic 8
click to zoom

TLIN2029DQ1 Details

  • Manufacturer Part Number:

    TLIN2029DQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

TLIN2029DQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Use a level shifter or a voltage translator to match the voltage levels between the TLIN2029DQ1 and the microcontroller. Ensure that the clock frequency and data transmission rate are within the specified limits. Use a pull-up resistor on the SCL line to prevent bus contention.
  • The maximum cable length supported by the TLIN2029DQ1 is 10 meters, assuming a cable with a capacitance of 100pF/m. However, this can be extended up to 20 meters using repeaters or active cables.
  • Use a logic analyzer or an oscilloscope to monitor the SCL and SDA lines. Check for proper voltage levels, clock frequency, and data transmission rate. Verify that the device is properly addressed and that the bus is not overloaded.
  • Yes, the TLIN2029DQ1 supports multi-master configuration. However, ensure that each master device has a unique address and that the bus is properly arbitrated to prevent data corruption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLIN2029DQ1 Overview

Use the download button to access the TLIN2029DQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
