TLIN2029DRBTQ1 - Texas Instruments

Description: LIN Transceivers Fault Protected Local Interconnect Network (LIN) Transceiver With Dominant State Timeout 8-SON -40 to 125

Download TLIN2029DRBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

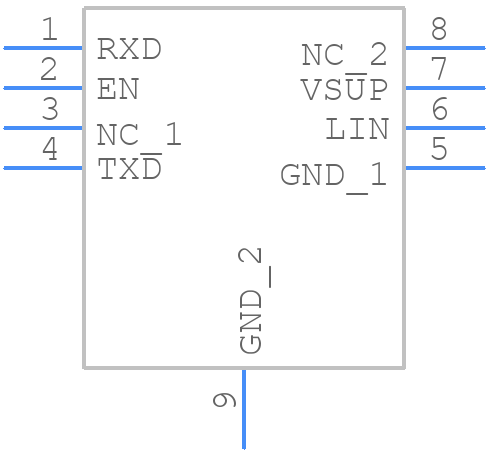

TLIN2029DRBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLIN2029DRBTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008F
click to zoom
3D Models
TLIN2029DRBTQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008F
click to zoom

TLIN2029DRBTQ1 Details

  • Manufacturer Part Number:

    TLIN2029DRBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLIN2029DRBTQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider derating the device's operating frequency and voltage to prevent overheating.
  • The limited output current may require additional buffering or amplification stages to drive heavy loads. Ensure that your system design takes into account the device's current limitations to prevent overheating or damage.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check for proper power supply voltage, decoupling, and signal integrity. Consult the datasheet and application notes for troubleshooting guidelines.
  • No, TLIN2029DRBTQ1 is not designed for radiation-hardened or high-reliability applications. For such applications, consider using devices specifically designed and qualified for those environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLIN2029DRBTQ1 Overview

Use the download button to access the TLIN2029DRBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2, or try a keyword search, such as Network Interfaces
