Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for signal routing, decoupling, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TLIN24413DMTRQ1 has a thermal pad that must be connected to a solid ground plane to dissipate heat. A thermal via array or a thermal pad connected to a heat sink can be used to improve thermal management. The device's junction temperature (Tj) should be kept below 150°C to ensure reliability and performance.
The TLIN24413DMTRQ1 supports cable lengths up to 100 meters, depending on the specific application and signal quality requirements. However, it's recommended to consult the datasheet and application notes for specific guidance on cable length and signal integrity.
The TLIN24413DMTRQ1 is rated for operation up to 125°C, making it suitable for high-temperature environments. However, the device's performance and reliability may degrade at higher temperatures, and the recommended operating temperature range is -40°C to 85°C.
Texas Instruments provides a troubleshooting guide in the application note SLVA884, which covers common issues such as signal integrity problems, power supply noise, and thermal management. Additionally, the device's datasheet and user guides provide guidance on debugging and troubleshooting techniques.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLIN24413DMTRQ1 Overview

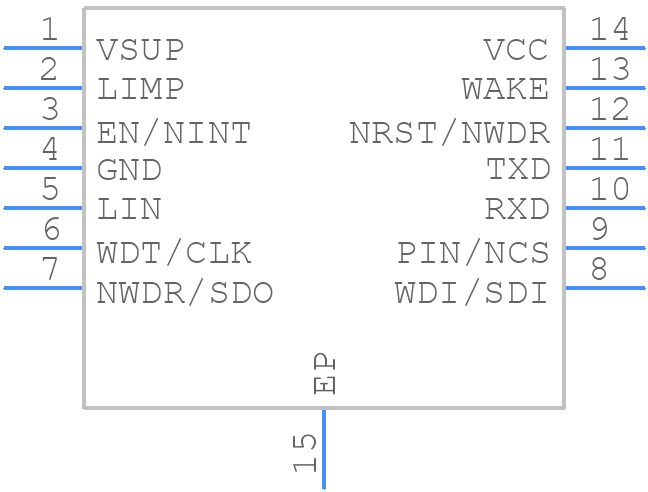

Use the download button to access the TLIN24413DMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
