Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TLIN24415DMTRQ1 has a high power dissipation, so it's essential to implement proper thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. The thermal resistance (RθJA) is specified in the datasheet, and the application note SLVA883 provides more detailed guidance.
The TLIN24415DMTRQ1 has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate within a narrower temperature range if possible.
To ensure EMC, follow the guidelines in the application note SLVA883, which provides recommendations for PCB layout, component selection, and shielding. Additionally, consider using electromagnetic interference (EMI) filters, such as common-mode chokes or ferrite beads, to reduce emissions and improve immunity.
The recommended input capacitance for the TLIN24415DMTRQ1 is 10 nF to 100 nF, as specified in the datasheet. However, the optimal input capacitance may vary depending on the specific application and operating conditions. It's recommended to experiment with different capacitance values to find the optimal value for your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLIN24415DMTRQ1 Overview

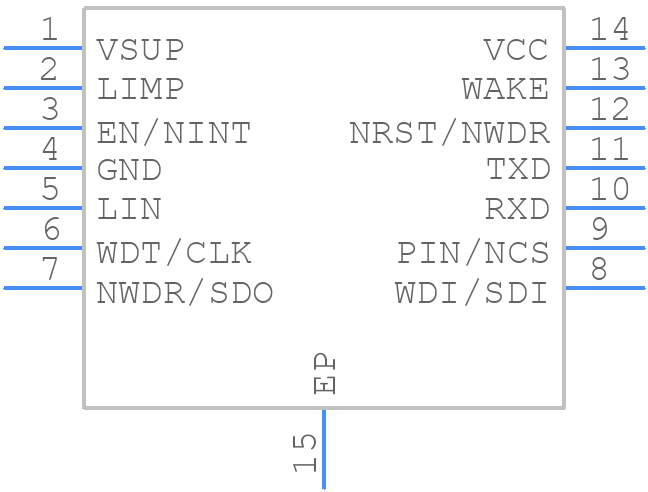

Use the download button to access the TLIN24415DMTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLIN2,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
