TLK10031CTR - Texas Instruments

Description: Single-Channel XAUI/10GBASE-KR Transceiver

Download TLK10031CTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLK10031CTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

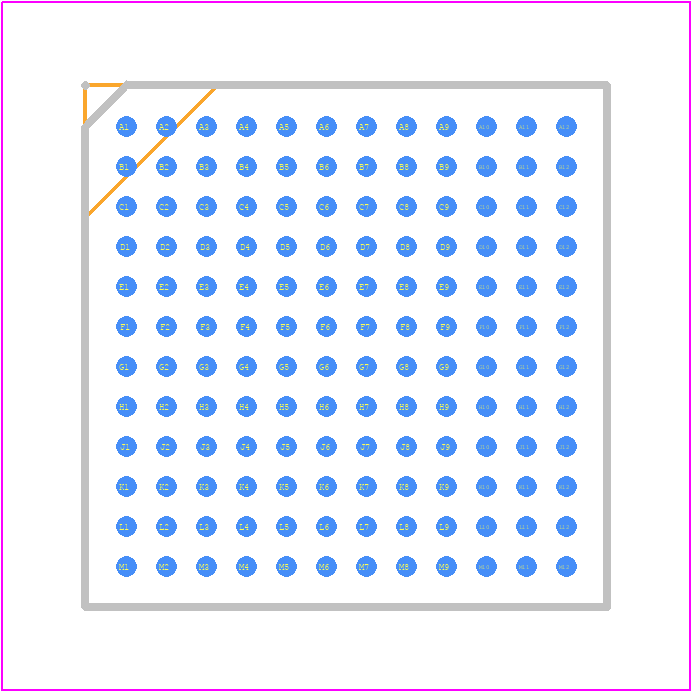

TLK10031CTR - Texas Instruments PCB footprint - BGA - BGA - CTR (S-PBGA-N144)
click to zoom
3D Models
TLK10031CTR - Texas Instruments - 3D model - BGA - CTR (S-PBGA-N144)
click to zoom

TLK10031CTR Details

  • Manufacturer Part Number:

    TLK10031CTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    10312500 Mbps

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    144

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA144,12X12,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.25 mm

  • Supply Current-Max:

    700 mA

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

TLK10031CTR Frequently Asked Questions (FAQs)

  • The TLK10031CTR supports cable lengths up to 100 meters, but this can vary depending on the specific application and cable quality.
  • The TLK10031CTR can be configured for half-duplex or full-duplex operation by setting the HDX pin high or low, respectively. Consult the datasheet for specific pin configurations.
  • The power consumption of the TLK10031CTR varies depending on the operating mode and frequency. Typically, it consumes around 150mA at 3.3V supply voltage. Consult the datasheet for detailed power consumption specifications.
  • No, the TLK10031CTR is designed to operate with a 3.3V supply voltage. Using a lower supply voltage may affect its performance and reliability.
  • To troubleshoot issues with the TLK10031CTR, check the power supply voltage, signal integrity, and cable connections. Use an oscilloscope to verify signal quality and check for errors. Consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLK10031CTR Overview

Use the download button to access the TLK10031CTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK10, or try a keyword search, such as Network Interfaces
