Texas Instruments provides a recommended PCB layout in the application note SLVA704, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TLK2226ZEA.
The TLK2226ZEA is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at higher temperatures. Consult the datasheet and application notes for thermal derating guidelines.
Yes, the TLK2226ZEA is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a robust process to ensure high reliability and low defect rates.
Start by checking the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Verify the PCB layout and component selection meet the recommended guidelines. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Consult the datasheet, application notes, and Texas Instruments' support resources for troubleshooting guides and FAQs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLK2226ZEA Overview

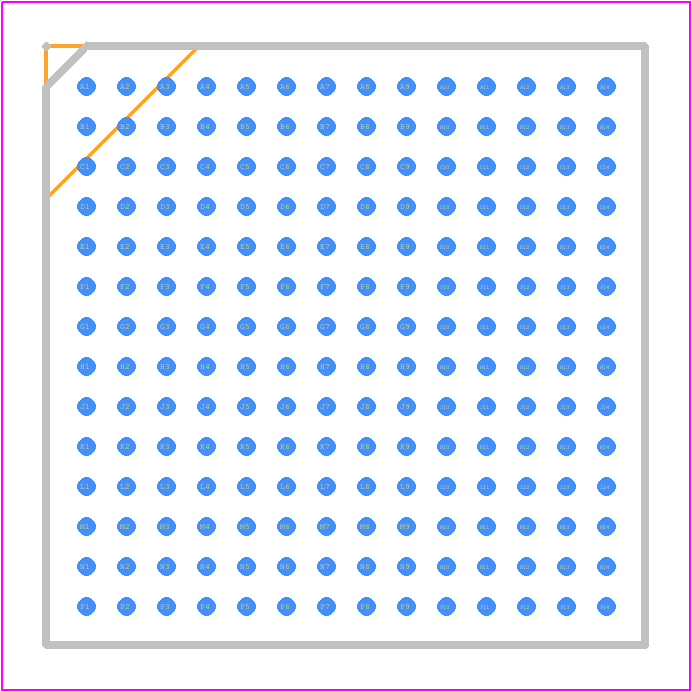

Use the download button to access the TLK2226ZEA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLK22,
or try a keyword search, such as Network Interfaces
