TLN6228M006R0055 - Kyocera AVX

Description: AVX Tantalum Capacitor 2200µF 6.3V dc MnO2 Solid ±20% Tolerance TLN Series

Download TLN6228M006R0055 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLN6228M006R0055 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

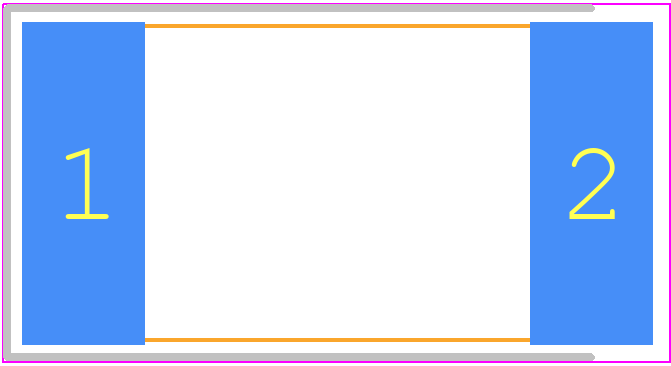

TLN6228M006R0055 - Kyocera AVX PCB footprint - Capacitor Chip Polarised - Capacitor Chip Polarised - code 6
click to zoom
3D Models
TLN6228M006R0055 - Kyocera AVX - 3D model - Capacitor Chip Polarised - code 6
click to zoom

TLN6228M006R0055 Details

  • Manufacturer Part Number:

    TLN6228M006R0055

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    2200 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    55 mΩ

  • Height:

    2 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.132 mA

  • Length:

    14.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    818 mA

  • Size Code:

    5831

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    WRAPAROUND

  • Width:

    7.8 mm

TLN6228M006R0055 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TLN6228M006R0055 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
  • To prevent damage, it's recommended to handle the TLN6228M006R0055 by the edges, avoiding touching the component's electrical contacts. It's also essential to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The maximum reflow temperature for the TLN6228M006R0055 is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
  • The TLN6228M006R0055 is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with Kyocera AVX Components' technical support to determine the component's suitability for your specific use case.
  • To maintain the shelf life of the TLN6228M006R0055, it's recommended to store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. It's also essential to follow the storage conditions specified in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLN6228M006R0055 Overview

Use the download button to access the TLN6228M006R0055 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLN62, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
