TLP104(TPL,E - Toshiba

Description: Logic Output Optoisolator 1Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 6-SO, 5 Lead

Download TLP104(TPL,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

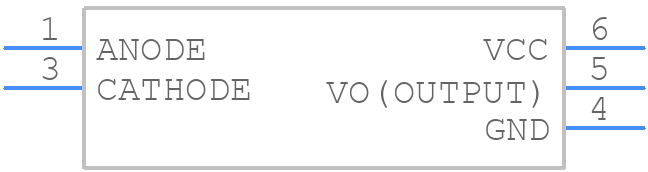

TLP104(TPL,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP104(TPL,E - Toshiba PCB footprint - Other - Other - TLP104(TPL,E-7
click to zoom

TLP104(TPL,E Details

  • Manufacturer Part Number:

    TLP104(TPL,E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-6/5

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    2019-06-18

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, 15 INCH

  • Response Time-Max:

    5.5e-7 s

  • Response Time-Nom:

    3.5e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

TLP104(TPL,E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP104 is 4.5V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the power dissipation of the TLP104 according to the thermal derating curve provided in the datasheet.
  • The maximum allowable current through the TLP104 is 50mA per channel.
  • To protect the TLP104 from ESD, it is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-protected packaging and storage.
  • Yes, the TLP104 can be used in switching power supply applications, but it is recommended to ensure that the device is operated within its recommended operating conditions and that proper thermal management is implemented.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP104(TPL,E Overview

Use the download button to access the TLP104(TPL,E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP10, or try a keyword search, such as Optocoupler
