Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal conductivity between the device and the PCB, and consider using a heat sink if necessary.
The maximum allowable voltage on the VCC pin is 7V, although the recommended operating voltage is 5V ± 10%. Exceeding this voltage may cause damage to the device or affect its reliability.
Yes, the TLP104 can be used with a 3.3V power supply, but the output voltage will be reduced accordingly. The device's output voltage is typically 0.7V to 1.5V below the VCC voltage, so the output voltage would be around 1.8V to 2.6V with a 3.3V power supply.
The TLP104 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP104(TPR,E) Overview

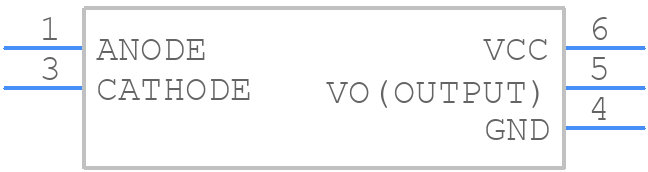

Use the download button to access the TLP104(TPR,E) schematic symbol and PCB footprint.
