TLP104(V4-TPL,E - Toshiba

Description: High Speed Optocouplers Photo-IC -0.5 to 30V 125degC 3750 Vrms

Download TLP104(V4-TPL,E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP104(V4-TPL,E model

Email notifications will be applied after download.

Send part feedback

Symbol

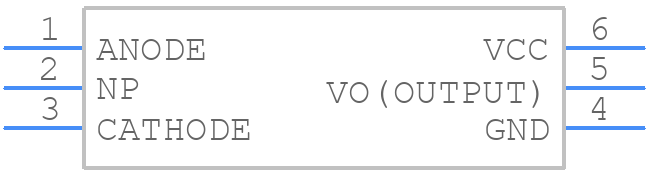

TLP104(V4-TPL,E - Toshiba - PCB symbol

PCB Footprints

TLP104(V4-TPL,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 5pin SO6

3D Models

TLP104(V4-TPL,E - Toshiba - 3D model - Small Outline Packages - 5pin SO6

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP104(V4-TPL,E
Part Number TLP104(V4-TPL,E
Manufacturer Toshiba
Pin Count 6
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 5pin SO6
Released Date Jun 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP104(V4-TPL,E Details

Manufacturer Part Number:
TLP104(V4-TPL,E
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOP-6/5
Country Of Origin:
Thailand
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED, VDE APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.025 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.008 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TR, 15 INCH
Response Time-Max:
5.5e-7 s
Response Time-Nom:
3.5e-7 ns
Supply Voltage-Min:
4.5 V
Surface Mount:
YES

TLP104(V4-TPL,E Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP104 is 4.5V to 5.5V.
To ensure reliable operation in high-temperature environments, it is recommended to derate the power dissipation of the TLP104 according to the temperature derating curve provided in the datasheet.
The maximum allowable current for the TLP104 is 50mA per channel.
To protect the TLP104 from ESD, it is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-protected packaging and storage.
Yes, the TLP104 is suitable for high-speed data transmission applications, with a data transfer rate of up to 100Mbps.
