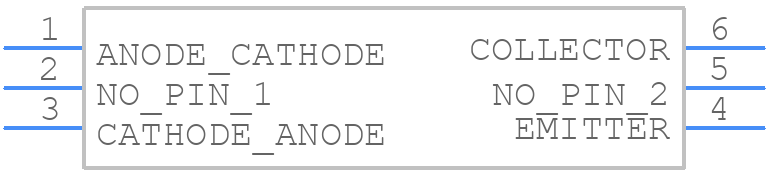

TLP126(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP126(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4C1
click to zoom
3D Models
TLP126(F) - Toshiba - 3D model - Small Outline Packages - 11-4C1
click to zoom

TLP126(F) Details

  • Manufacturer Part Number:

    TLP126(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, 11-4C1, SOP-4/6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000008 s

  • Surface Mount:

    YES

TLP126(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP126(F) is 3.3V to 5V, although it can operate from 2.7V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
  • The maximum current rating for the TLP126(F) is 50mA per channel, although it's recommended to keep the current below 20mA for reliable operation.
  • The TLP126(F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an anti-static wrist strap and working on an ESD-safe surface.
  • The TLP126(F) is rated for operation up to 85°C, but it's recommended to derate the device for reliable operation above 70°C. Consult the datasheet for specific derating guidelines.
