A good PCB layout for the TLP131 involves keeping the input and output traces short and separate, using a ground plane to reduce noise, and placing the optocoupler close to the PCB edge to minimize electromagnetic interference.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary. Additionally, verify that the device is operated within its specified temperature range.
The maximum allowable voltage for the TLP131 is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
Yes, the TLP131 can be used in high-frequency applications up to 1 MHz. However, it's essential to consider the device's bandwidth, rise time, and fall time to ensure it meets the requirements of your specific application.
To troubleshoot issues with the TLP131, start by verifying the power supply voltage, checking for proper connections, and ensuring that the device is operated within its specified temperature range. If issues persist, consult the datasheet and application notes or contact Toshiba's technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP131(GB-TPL,F) Overview

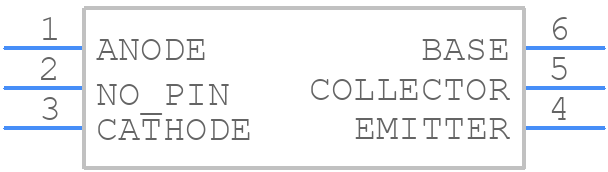

Use the download button to access the TLP131(GB-TPL,F) schematic symbol, PCB footprint, and 3D model.
