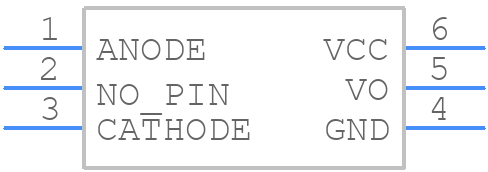

TLP152(E(T - Toshiba

TLP152(E(T Frequently Asked Questions (FAQs)

• What is the maximum allowable voltage that can be applied to the input pins?
  The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage may cause damage to the device.
• How do I ensure reliable operation of the TLP152(E) in high-temperature environments?
  To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
• What is the recommended PCB layout and spacing for the TLP152(E) to minimize electromagnetic interference (EMI)?
  To minimize EMI, it is recommended to follow good PCB layout practices, such as keeping the optocoupler away from high-frequency signals, using a ground plane, and keeping the input and output circuits separate.
• Can the TLP152(E) be used in applications requiring high-speed data transmission?
  While the TLP152(E) has a relatively fast response time, it is not suitable for high-speed data transmission applications. For such applications, consider using a high-speed optocoupler like the TLP2361 or TLP2362.
• How do I choose the correct current-limiting resistor for the TLP152(E) input?
  To choose the correct current-limiting resistor, calculate the required resistance value based on the input voltage, desired current, and the optocoupler's input current rating. A general guideline is to use a resistor value that limits the input current to 10-20mA.
