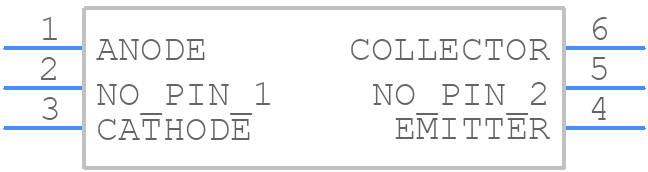

TLP181(GB,F,T) - Toshiba

TLP181(GB,F,T) Frequently Asked Questions (FAQs)

• What is the recommended operating voltage range for the TLP181?
  The recommended operating voltage range for the TLP181 is 4.5V to 5.5V, although it can operate from 3.5V to 5.5V with reduced performance.
• How do I ensure the TLP181 is properly biased for optimal performance?
  To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
• What is the maximum current that the TLP181 can sink or source?
  The TLP181 can sink or source up to 15mA of current per output pin, but it's recommended to limit the current to 10mA or less to ensure reliable operation.
• How do I handle the thermal considerations for the TLP181?
  The TLP181 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device to prevent thermal shutdown or damage.
• Can I use the TLP181 in a high-frequency application?
  Yes, the TLP181 is suitable for high-frequency applications up to 100MHz. However, ensure proper PCB layout, decoupling, and signal termination to minimize signal reflections and noise.
