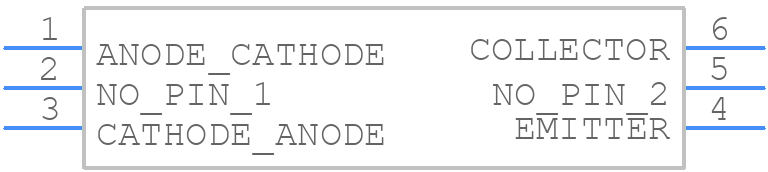

TLP182(E - Toshiba - PCB symbol

PCB Footprints

TLP182(E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1

3D Models

TLP182(E - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP182(E
Part Number TLP182(E
Manufacturer Toshiba
Pin Count 6
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-4M1S_1
Released Date Apr 12, 2022
Last Modified Date Apr 4, 2025 2:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP182(E Details

Manufacturer Part Number:
TLP182(E
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-6/4
ECCN Code:
3A001.a.2.c
HTS Code:
8541.40.80.00
Factory Lead Time:
14 Weeks
Manufacturer:
Toshiba America Electronic Components
YTEOL:
8
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
80 V
Configuration:
SINGLE
Current Transfer Ratio-Min:
50%
Dark Current-Max:
80 nA
Forward Current-Max:
0.05 A
Forward Voltage-Max:
1.4 V
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
On-State Current-Max:
0.05 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.2 W
Response Time-Max:
0.000002 s
Surface Mount:
YES

TLP182(E Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP182(E) is 4.5V to 5.5V.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, make sure to decouple the power supply with a 0.1uF capacitor.
The maximum current rating for the TLP182(E) is 50mA per channel.
To protect the TLP182(E) from ESD and overvoltage, use a TVS diode or a zener diode on the input lines, and consider adding a series resistor to limit the current.
The propagation delay of the TLP182(E) is typically around 10ns, but can vary depending on the specific application and operating conditions.
