Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure high-speed signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
TLP182 has a high current capability, which can generate heat. To handle heat dissipation, use a heat sink, ensure good airflow, and consider using a thermal interface material (TIM) between the device and the heat sink. The recommended operating temperature range is -40°C to 85°C.
The maximum cable length supported by TLP182 depends on the specific application and the signal frequency. As a general guideline, Toshiba recommends keeping the cable length as short as possible (less than 1 meter) to minimize signal attenuation and ensure reliable data transmission.
TLP182 is designed for low-voltage applications (up to 5.5V). Using it in a high-voltage application may exceed the device's absolute maximum ratings and can lead to device failure or damage. If you need a high-voltage optocoupler, consider using a different device specifically designed for high-voltage applications.
To ensure reliability in a high-temperature environment, follow proper derating guidelines, use a heat sink, and ensure good airflow. Additionally, consider using a device with a higher temperature rating or a different package type (e.g., SOP or DIP) that can better handle high temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP182(GB,E Overview

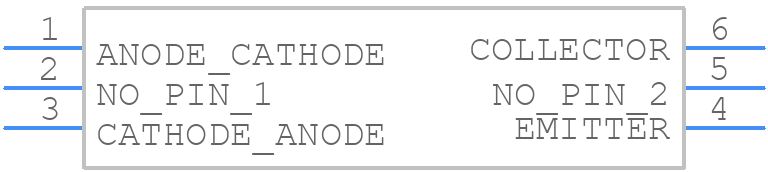

Use the download button to access the TLP182(GB,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP18,
or try a keyword search, such as Optocoupler
