TLP182(GR,E(T - Toshiba

Description: Toshiba, TLP182(GR,E(T AC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin SO6

Download TLP182(GR,E(T Model

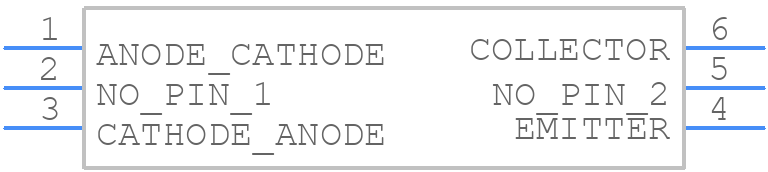

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP182(GR,E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP182(GR,E(T - Toshiba  - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP182(GR,E(T Details

  • Manufacturer Part Number:

    TLP182(GR,E(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/4

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    80 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP182(GR,E(T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP182 is -40°C to 85°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related characteristics.
  • To ensure optimal reliability, handle the TLP182 by the edges, avoid touching the optical surface, and store it in a clean, dry environment. Also, follow proper soldering and assembly procedures to prevent mechanical stress and damage.
  • The recommended soldering temperature for the TLP182 is 260°C (peak temperature) for 10 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the device.
  • While the TLP182 is designed to operate in a wide range of environments, it's not recommended for use in high-humidity environments (above 80% RH) without proper protection. Moisture can affect the device's performance and reliability. Consider using a moisture-resistant coating or conformal coating to protect the device in humid environments.
  • Clean the TLP182 using a soft brush, lint-free wipe, or a gentle air blower to remove any debris or contaminants. Avoid using chemicals, solvents, or abrasive materials that can damage the device's optical surface or compromise its performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP182(GR,E(T Overview

Use the download button to access the TLP182(GR,E(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP18, or try a keyword search, such as Optocoupler
