TLP183(GB,E(T - Toshiba

Description: Photocoupler Transistor, 80V, 4pin SO6

Download TLP183(GB,E(T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TLP183(GB,E(T - Toshiba - PCB symbol
click to zoom
PCB Footprints

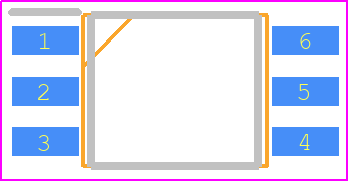

TLP183(GB,E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP183(GB,E(T - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP183(GB,E(T Details

  • Manufacturer Part Number:

    TLP183(GB,E(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/4

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    80 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP183(GB,E(T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP183 is 3.0 to 5.5 volts.
  • To ensure proper biasing, connect the anode to a voltage source through a current-limiting resistor, and connect the cathode to a voltage source or a load through a current-limiting resistor.
  • The maximum current rating for the TLP183 is 30mA.
  • To prevent ESD damage, handle the TLP183 by the body or use an anti-static wrist strap, and ensure the workspace is ESD-protected.
  • The TLP183 is rated for operation up to 85°C, but derating is required for temperatures above 70°C. Consult the datasheet for specific derating guidelines.
