TLP184(GR,SE - Toshiba

Description: Transistor Output Optocouplers 50mA Photocoupler 80V 50mA 3750Vrms

Download TLP184(GR,SE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

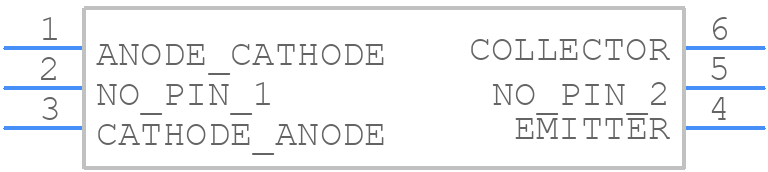

TLP184(GR,SE - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP184(GR,SE - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP184(GR,SE - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP184(GR,SE Details

  • Manufacturer Part Number:

    TLP184(GR,SE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/4

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    80 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP184(GR,SE Frequently Asked Questions (FAQs)

  • The recommended PCB layout for TLP184 involves keeping the input and output traces as short as possible, using a ground plane to reduce noise, and placing a 0.1uF bypass capacitor between VCC and GND pins.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 85°C), use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB.
  • The maximum allowable voltage on the input pins of TLP184 is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V for optimal performance.
  • Yes, TLP184 can be used as a level shifter for 5V to 3.3V conversion. However, it's essential to ensure that the input voltage is within the recommended operating range, and the output voltage is within the specified output voltage range.
  • The typical propagation delay of TLP184 is around 10ns, which is relatively fast compared to other optocouplers. However, the actual propagation delay may vary depending on the specific application and operating conditions.
