TLP184(SE footprint, schematic symbol and 3D model by Toshiba

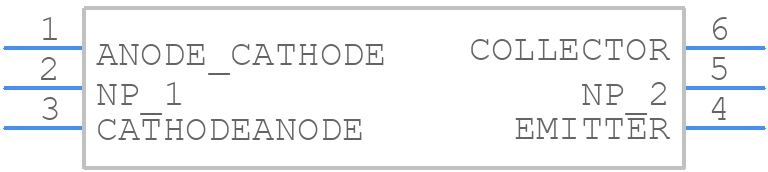

Symbol

PCB Footprints

3D Models

TLP184(SE Details

The TLP184 can operate in a temperature range of -40°C to 100°C.
To ensure reliability, it's essential to follow proper derating guidelines, provide adequate heat sinking, and ensure that the device is operated within its recommended operating conditions.
The recommended LED forward current for the TLP184 is 10 mA to 20 mA, depending on the specific application requirements.
The resistor value depends on the input voltage, LED forward voltage, and desired LED current. A general guideline is to use a resistor value that limits the LED current to the recommended range.
While the TLP184 is not designed for high-frequency applications, it can be used up to 100 kHz. However, for higher frequencies, it's recommended to use a specialized high-frequency optocoupler.

Expert Contribution

System Verified

Community Approved

Use the download button to access the TLP184(SE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP18, or try a keyword search, such as Optocoupler
