The recommended operating voltage range for the TLP185 is 3.3V to 5V, although it can operate up to 7V with reduced performance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
The maximum current rating for the TLP185 is 50mA per channel, although it's recommended to derate the current to 30mA per channel for reliable operation.
Yes, the TLP185 is suitable for high-speed data transmission applications up to 10Mbps, making it suitable for applications such as USB, UART, and I2C interfaces.
The TLP185 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP185(Y,SE(T Overview

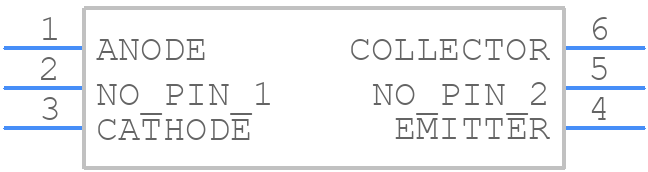

Use the download button to access the TLP185(Y,SE(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP18,
or try a keyword search, such as Optocoupler
