TLP197G(TP,F) - Toshiba

Description: SSR RELAY SPST-NO 120MA 0-350V

Download TLP197G(TP,F) Model

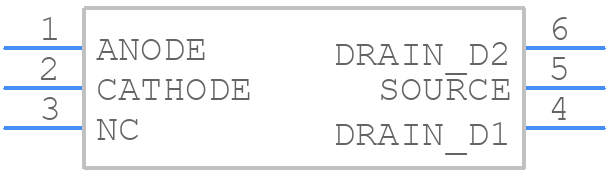

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP197G(TP,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-7C1
click to zoom

TLP197G(TP,F) Details

  • Manufacturer Part Number:

    TLP197G(TP,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-6

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    40 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.1 mm

  • Overall Length:

    6.3 mm

  • Surface Mount:

    YES

TLP197G(TP,F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP197G involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the power source to minimize inductance.
  • To ensure reliability in high-temperature applications, ensure that the device is operated within its recommended temperature range, use a heat sink if necessary, and follow proper thermal design guidelines.
  • The TLP197G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation to prevent damage.
  • Yes, the TLP197G can be used in switching power supply applications, but ensure that the device is properly bypassed and filtered to minimize noise and ripple.
  • To troubleshoot issues with the TLP197G, check the input voltage, output load, and PCB layout, and verify that the device is operated within its recommended specifications.
