TLP197GA(TP,F) - Toshiba

Description: MOSFET Output Optocouplers Photorelay Voff=400V Ion=0.12A

Download TLP197GA(TP,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

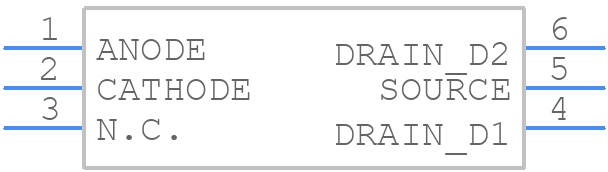

Symbol
TLP197GA(TP,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP197GA(TP,F) - Toshiba PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 11-7C1
click to zoom
3D Models
TLP197GA(TP,F) - Toshiba - 3D model - SOT23 (6-Pin) - 11-7C1
click to zoom

TLP197GA(TP,F) Details

  • Manufacturer Part Number:

    TLP197GA(TP,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-6

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.1 mm

  • Overall Length:

    6.3 mm

  • Surface Mount:

    YES

TLP197GA(TP,F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal impedance to ensure high-speed signal integrity and minimize electromagnetic interference (EMI).
  • The TLP197GA has a thermal pad that should be connected to a solid ground plane or a thermal via to dissipate heat. Ensure good airflow and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
  • The maximum allowable voltage on the input pins of the TLP197GA is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation.
  • The TLP197GA is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is operated within its recommended operating temperature range of -40°C to 85°C for optimal performance and reliability.
  • The TLP197GA requires a bias voltage of 3.3V to 5V on the VCC pin, and the input pins should be biased to a logic high or low level. Ensure that the bias voltage is stable and within the recommended operating range to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP197GA(TP,F) Overview

Use the download button to access the TLP197GA(TP,F) schematic symbol, PCB footprint, and 3D model.
