TLP206A(F) - Toshiba

Description: Photocoupler MOSFET Dual 60V 3mA SOP8 Toshiba TLP206A(F) DC Input MOSFET Output Dual Optocoupler, Surface Mount, 8-Pin SOP

Download TLP206A(F) Model
Schematic

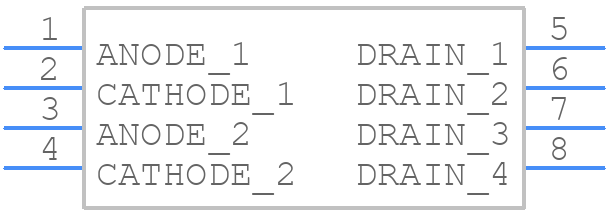

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP206A(F) - Toshiba PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TLP206A(F)-1
click to zoom
3D Models
TLP206A(F) - Toshiba  - 3D model - SOT23 (8-Pin) - TLP206A(F)-1
click to zoom

TLP206A(F) Details

  • Manufacturer Part Number:

    TLP206A(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.005 A

  • Control Voltage:

    1 V

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.4 A

  • On-state Resistance-Max:

    2 Ω

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.1 mm

  • Overall Length:

    9.4 mm

  • Surface Mount:

    YES
