TLP2105(TP,F) - Toshiba

Description: Optocoupler Logic-Out Totem-Pole AC-IN 2-CH 8-Pin SO - Tape and Reel )

Download TLP2105(TP,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

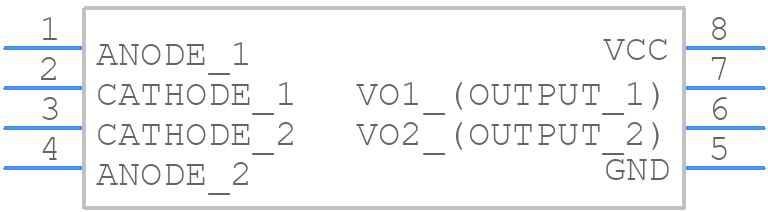

TLP2105(TP,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2105(TP,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - so_81
click to zoom
3D Models
TLP2105(TP,F) - Toshiba - 3D model - Small Outline Packages - so_81
click to zoom

TLP2105(TP,F) Details

  • Manufacturer Part Number:

    TLP2105(TP,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    1

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Max:

    2.5e-7 s

  • Response Time-Nom:

    1.5e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    YES

TLP2105(TP,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP2105 is 4.5V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, connect the GND pin to a solid ground plane.
  • The maximum current rating for the TLP2105's output pins is 50mA per pin.
  • To ensure ESD protection, use a TVS (Transient Voltage Suppressor) diode or a Zener diode with a voltage rating of 5.5V or higher, connected between the VCC pin and the GND pin.
  • For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the signal traces short and direct. Avoid routing signals under the device, and use a via to connect the GND pin to the ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2105(TP,F) Overview

Use the download button to access the TLP2105(TP,F) schematic symbol, PCB footprint, and 3D model.
